LED Operation Theatre Light, HexaWave®+
HexaWave®+ IoT LED LED Operation Theatre Light
Operation Theatre Surgical Light are specialized lighting systems designed to provide bright, focused, and shadow-free illumination during surgical procedures. These lights are essential for ensuring optimal visibility, accuracy, and safety in the operating room.
With IoT based Digital Touch Control Panel & Mobile connectivity forMonitoring + Control + Data storage + Analysis + Report Generation
Features (Basic Configuration)
Pure White like Natural Daylight, Bright and Real Cool Light
Imported Spring Arm structure
More than 1100 mm up-down movement
Low energy consumption, High efficiency, very Low heating
Compact, Light Weight, Slim Dome design suitable for Laminar flow
Sterilisable & Detachable Handle at the Dome center for Focus adjustment
Big Touch screen color LCD display control panel
Six motions in each arm to achieve all positions and angles
Wi-Fi Enabled Control panel for Mobile connectivity for wireless Monitoring + Control + Data storage + Data Analysis + Report Generation
All five rotary motions in each arm with stopper less 360O design for continuous rotation
Wide reach of more than 2 meters in all direction from center for both arms to cover majority of Operation room area
- Variants & Categories
- Applications: For all Major Surgeries - Cardiac, Neuro, Ortho, Gynec, General, ENT, etc…
- Intensity per Dome: 1,00,000 Lux / 1,20,000 Lux / 1,60,000 Lux at 1 meter
- Mounting: Ceiling or Wall or Portable / Mobile / on Wheels
- Variations: Single Dome, Dual dome, Triple Dome
- Options: Wireless Camera, Battery Backup, Monitor Arm
- Specifications
- Long Life of more than 50,000 hours for LED
- User selectable Intensity variation from 0 - 100%
- Wide Input voltage range: 90 v to 260 v to cover mains voltage fluctuations
- User adjustable Focus diameter of 150-300 mm & Focus distance of 700-1500 mm

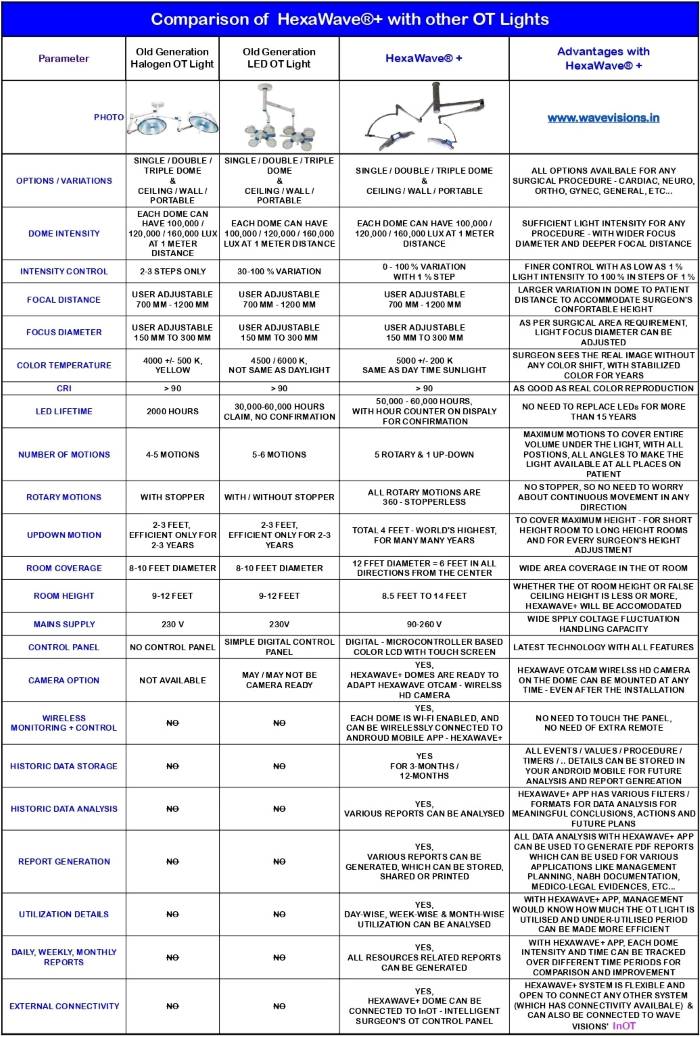

Is There a Surgical Light Better Than HexaWave®+ LED?
Parameter
Old Generation Halogen OT Light
Old Generation LED OT Light
HexaWave®+ LED
Advantages with HexaWave®+
OPTIONS / VARIATIONS
SINGLE / DOUBLE / TRIPLE DOME & CEILING / WALL / PORTABLE
SINGLE / DOUBLE / TRIPLE DOME & CEILING / WALL / PORTABLE
SINGLE / DOUBLE / TRIPLE DOME & CEILING / WALL / PORTABLE
ALL OPTIONS AVAILBALE FOR ANY SURGICAL PROCEDURE - CARDIAC, NEURO, ORTHO, GYNEC, GENERAL, ETC...
DOME INTENSITY
EACH DOME CAN HAVE 100,000 / 120,000 / 160,000 LUX AT 1 METER DISTANCE
EACH DOME CAN HAVE 100,000 / 120,000 / 160,000 LUX AT 1 METER DISTANCE
EACH DOME CAN HAVE 100,000 / 120,000 / 160,000 LUX AT 1 METER DISTANCE
SUFFICIENT LIGHT INTENSITY FOR ANY PROCEDURE - WITH WIDER FOCUS DIAMETER AND DEEPER FOCAL DISTANCE
INTENSITY CONTROL
2-3 STEPS ONLY
30-100 % VARIATION
0 - 100 % VARIATION WITH 1 % STEP
FINER CONTROL WITH AS LOW AS 1% LIGHT INTENSITY TO 100% IN STEPS OF 1%
FOCAL DISTANCE
USER ADJUSTABLE 700 MM - 1200 MM
USER ADJUSTABLE 700 MM - 1200 MM
USER ADJUSTABLE 700 MM - 1200 MM
LARGER VARIATION IN DOME TO PATIENT DISTANCE TO ACCOMMODATE SURGEON'S CONFORTABLE HEIGHT
FOCUS DIAMETER
USER ADJUSTABLE 150 MM TO 300 MM
USER ADJUSTABLE 150 MM TO 300 MM
USER ADJUSTABLE 150 MM TO 300 MM
AS PER SURGICAL AREA REQUIREMENT, LIGHT FOCUS DIAMETER CAN BE ADJUSTED
COLOR TEMPERATURE
4000 +/- 500 K, YELLOW
4500 / 6000 K, NOT SAME AS DAYLIGHT
5000 +/- 200 K SAME AS DAY TIME SUNLIGHT
SURGEON SEES THE REAL IMAGE WITHOUT ANY COLOR SHIFT, WITH STABILIZED COLOR FOR YEARS
CRI
> 90
> 90
> 90
AS GOOD AS REAL COLOR REPRODUCTION
LED LIFETIME
2000 HOURS
30,000-60,000 HOURS CLAIM, NO CONFIRMATION
50,000 - 60,000 HOURS, WITH HOUR COUNTER ON DISPALY FOR CONFIRMATION
NO NEED TO REPLACE LEDs FOR MORE THAN 15 YEARS
NUMBER OF MOTIONS
4-5 MOTIONS
5-6 MOTIONS
5 ROTARY & 1 UP-DOWN
MAXIMUM MOTIONS TO COVER ENTIRE VOLUME UNDER THE LIGHT, WITH ALL POSTIONS, ALL ANGLES TO MAKE THE LIGHT AVAILABLE AT ALL PLACES ON PATIENT
ROTARY MOTIONS
WITH STOPPER
WITH / WITHOUT STOPPER
ALL ROTARY MOTIONS ARE 360 - STOPPERLESS
NO STOPPER, SO NO NEED TO WORRY ABOUT CONTINUOUS MOVEMENT IN ANY DIRECTION
UPDOWN MOTION
2-3 FEET, EFFICIENT ONLY FOR 2-3 YEARS
2-3 FEET, EFFICIENT ONLY FOR 2-3 YEARS
TOTAL 4 FEET - WORLD'S HIGHEST, FOR MANY MANY YEARS
TO COVER MAXIMUM HEIGHT - FOR SHORT HEIGHT ROOM TO LONG HEIGHT ROOMS AND FOR EVERY SURGEON'S HEIGHT ADJUSTMENT
ROOM COVERAGE
8-10 FEET DIAMETER
8-10 FEET DIAMETER
12 FFET DIAMETER = 6 FEET IN ALL DIRECTIONS FROM THE CENTER
WIDE AREA COVERAGE IN THE OT ROOM
ROOM HEIGHT
9-12 FEET
9-12 FEET
8.5 FEET TO 14 FEET
WHETHER THE OT ROOM HEIGHT OR FALSE CEILING HEIGHT IS LESS OR MORE, HEXAWAVE+ WILL BE ACCOMODATED
MAINS SUPPLY
230 V
230 V
90-260 V
WIDE SPPLY COLTAGE FLUCTUATION HANDLING CAPACITY
CONTROL PANEL
NO CONTROL PANEL
SIMPLE DIGITAL CONTROL PANEL
DIGITAL - MICROCONTROLLER BASED COLOR LCD WITH TOUCH SCREEN
LATEST TECHNOLOGY WITH ALL FEATURES
CAMERA OPTION
NOT AVAILABLE
MAY / MAY NOT BE CAMERA READY
YES, HEXAWAVE+ DOMES ARE READY TO ADAPT HEXAWAVE OTCAM - WIRELSS HD CAMERA
HEXAWAVE OTCAM WIRELSS HD CAMERA ON THE DOME CAN BE MOUNTED AT ANY TIME - EVEN AFTER THE INSTALLATION

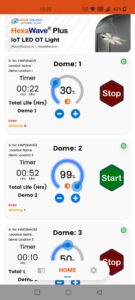

WIRELESS MONITORING + CONTROL
No
No
YES,
EACH DOME IS WI-FI
ENABLED, AND CAN BE
WIRELESSLY CONNECTED
TO ANDROID MOBILE APP
- HEXAWAVE+
AVAILABLE FREE ON
GOOGLE PLAY STORE
NO NEED TO TOUCH THE PANEL, NO NEED OF EXTRA REMOTE
HISTORIC DATA STORAGE
No
No
YES FOR 3-MONTHS / 12-MONTHS
ALL EVENTS / VALUES / PROCEDURE / TIMERS / .. DETAILS CAN BE STORED IN YOUR ANDROID MOBILE FOR FUTURE ANALYSIS AND REPORT GENREATION
HISTORIC DATA ANALYSIS
No
No
YES, VARIOUS REPORTS CAN BE ANALYSED
HEXAWAVE+ APP HAS VARIOUS FILTERS / FORMATS FOR DATA ANALYSIS FOR MEANINGFUL CONCLUSIONS, ACTIONS AND FUTURE PLANS
REPORT GENERATION
NO
NO
YES, VARIOUS REPORTS CAN BE GENERATED, WHICH CAN BE STORED, SHARED OR PRINTED
ALL DATA ANALYSIS WITH HEXAWAVE+ APP CAN BE USED TO GENERATE PDF REPORTS WHICH CAN BE USED FOR VARIOUS APPLICATIONS LIKE MANAGEMENT PLANNING, NABH DOCUMENTATION, MEDICO-LEGAL EVIDENCES, ETC...
UTILIZATION DETAILS
No
No
YES, DAY-WISE, WEEK-WISE & MONTH-WISE UTILIZATION CAN BE ANALYSED
WITH HEXAWAVE+ APP, MANAGEMENT WOULD KNOW HOW MUCH THE OT LIGHT IS UTILISED AND UNDER-UTILISED PERIOD CAN BE MADE MORE EFFICIENT
DAILY, WEEKLY, MONTHLY REPORTS
No
No
YES, ALL RESOURCES RELATED REPORTS CAN BE GENERATED
WITH HEXAWAVE+ APP, EACH DOME INTENSITY AND TIME CAN BE TRACKED OVER DIFFERENT TIME PERIODS FOR COMPARISON AND IMPROVEMENT
EXTERNAL CONNECTIVITY
No
No
YES, HEXAWAVE+ DOME CAN BE CONNECTED TO InOT - INTELLIGENT SURGEON'S OT CONTROL PANEL
HEXAWAVE+ SYSTEM IS FLEXIBLE AND OPEN TO CONNECT ANY OTHER SYSTEM (WHICH HAS CONNECTIVITY AVAILBALE) & CAN ALSO BE CONNECTED TO WAVE VISIONS' InOT
