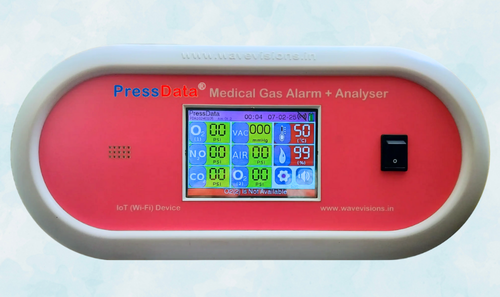

PressData® - Digital Medical Gas Alarm + Analyser
PressData®
Medical Gas Pressure Alarm with Analyzer – available in 2, 3, 4, 5, 6 channels
With Real-time Gas Pressure monitoring of each channel with Audio-Visual Alarm
Big Color LCD with Touch screen with IoT based Digital Touch Control Panel & Mobile connectivity for Live Monitoring + Control + Data storage + Analysis + Report Generation
Applications of PressData®
Medical Gas Pipeline Alarm System
Hospital Gas Generator / Supply end Pressure Monitoring
Critical places – OT, ICU, Ward, etc…
Each Floor for Gas leakage / choke up monitoring
OEM option available (contact Wave Visions)
PressData® can be customized with your own branding and labeling
along with feature and specification modifications as per your needs
Features (Basic Configuration)
Compact, Light Weight, Sleek unit
Wall mountable as well as Table-top unit
Built-in Rechargeable battery, charger and switch over circuit
Standard input gas connections
Big Touch screen color LCD display control panel
All six pressures’ Real time continuous display
Wi-Fi Enabled Control panel for Mobile connectivity for wireless monitoring + Alarm + Control + Data storage + Data Analysis + Report Generation
Real Date-Time display with Room Temperature and Humidity measurement
All six pressures’ user adjustable High & Low Alarm setting – Audio and Video alarms
WATCH DEMO
Get PressData® Medical Gas Alarm + Analyzer for Real-Time Monitoring and Peace of Mind !
- PressData® Variants
- Multiple Channels options available - 2 or 3 or 4 or 5 or 6 channels
- Positive gas pressures and Negative (Vacuum) pressure channels option available
- Alarm Relay output (multiple channels) available (optional)
- Wall mount, Panel Mount or Table-Top
- Mobile connectivity (Free), Wave Cloud Connectivity, WebApp monitoring - all options available
- InOT® Connectivity enabled
- Connectivity - data transfer to your own Hospital ERP, MIS software available (Optional)
- PressData® Specifications
- Five Positive Pressure channels: 0-100 PSI with 1 % Accuracy, 1 PSI Resolution
- Vacuum channel: 0-500 mmHg with 1% accuracy, 1 mmHg resolution
- Room Temperature: 0-50O C with 1 O C resolution
- Room Humidity: 0-100 % with 1 % resolution
- Battery backup time after full charge: 4-6 hours
- Wide Input voltage range: 90 v to 260 v to cover mains voltage fluctuations
- Dimensions: 280 mm x 125 mm x 110 mm, Weight: 0.5 Kg
Is There a Medical Gas Alarm Better Than PressData® ?
Model
Analog Gas Alarm
Digital Gas Alarm
PressData® Gas Alarm + Analyzer
Advantage with PressData®
Technology
Analog
Digital
Digital + IoT
Future Ready Technology
Pressure Channels
2,3,4 Postive 1 vacuum
2,3,4 Postive 1 vacuum
1,2,3,4,5 Positive 1 Vacuum
All options available for number of Channels
Sensor
Analog sensor
Digital Sensor
Digital Electronic Sensors
Longer Life
Calibration
Manual
Manual
Autocalibration, no calibration required
Calibration
Pressure Display
Gauge
LED
Big Color LCD with Touch
Screen on Device
Clear high resolution Value display with User Friendly operation
Alarm
fixed
user settable
User settable High & Low Alarm - individual for each channel - Audio and Video indications
Flexibility to control each channel as per Users requirement
Remote Connectivity
No
No
Wireless WiFi with
Android Mobile / Tablet
Can monitor simultaneously from Users's own Mobile / Tablet also
Remote monitoring
No
No
Live Graphical Trend for
each channel on Mobile
Not just Pressure values but also live graph for variations in pressure values
Remote Alarm
No
No
Alarm display on Remote Mobile/Tablet also
No need to continuously monitor the Device, Even your mobile also gives the live Alarm indication
Data Storage
No
No
Every Minute data stored for last 3 months
Can verify the details of each channel every minute for last 90 days
Report Generation
No
No
Each channel Graphical report can be generated from Mobile / Tablet for last 3 months
PDF report as per your selection, and these Reprots can be shared, stored, or printed
Power Supply
Mains operated
Mains operated
Mains as well as built-in Rechargeable Battery
Even in case of power failure, PressData continue to monitor and
Battery backup
No
No
6 hours backup even after Mains off
Even in case of power failure, PressData continue to monitor and
Mounting/Placement
Wall
Wall
Wall, Panel or Table-Top
Can be used everywhere
