OxyTrack - Live Oxygen Cylinder Status Monitoring & Tracking System
Smart & Real-Time Oxygen Monitoring

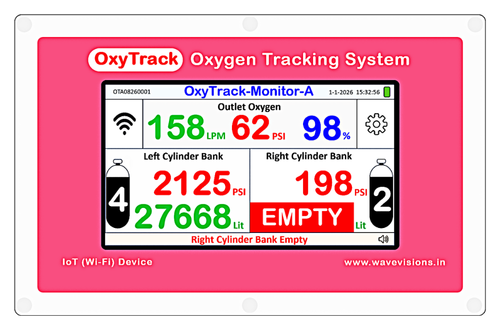

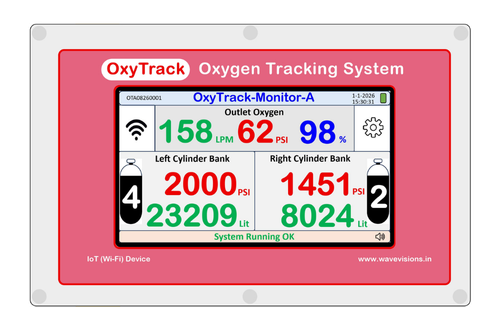

OxyTrack is a Wi-Fi enabled oxygen monitoring system designed to provide hospitals with real-time visibility of their oxygen cylinder supply. It continuously monitors cylinder bank pressure, estimated oxygen quantity, outlet pressure, oxygen purity and flow, while recording consumption data for analysis and reporting.
With remote access through mobile, PC or laptop, hospital teams can monitor oxygen status and receive alerts without being physically present near the cylinder manifold.
Features (Basic Configuration)
Monitor 2 or 3 oxygen cylinder banks with pressure measurement from 0–200 bar (0–3000 PSI).
Track oxygen consumption continuously with historical data for the last hour, 24 hours, week and month.

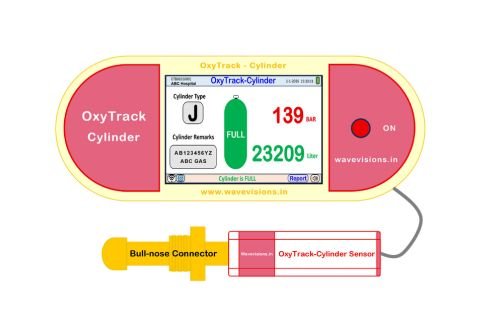

Track the estimated oxygen quantity remaining in each cylinder bank in litres, helping staff understand available oxygen supply.
Monitor oxygen purity from 0–100% for continuous visibility of oxygen quality.
Monitor oxygen flow with selectable ranges of 0–100, 0–200 or 0–500 LPM.
Monitor oxygen outlet pressure from 0–100 PSI (0–7 bar) in real time.
Access live oxygen data and alarms remotely through mobile, PC or laptop using Wi-Fi connectivity.
Automatically record oxygen monitoring data minute-by-minute through the hospital Wi-Fi network.
Set user-adjustable high and low alarm limits for cylinder bank and outlet pressure.
Generate hourly, daily, weekly and monthly reports for oxygen pressure and consumption.
Monitor Every Critical Oxygen Parameter with OxyTrack by Wave Visions

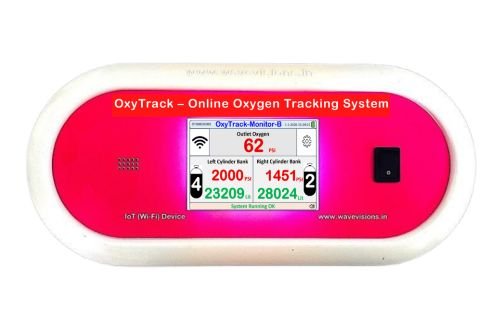

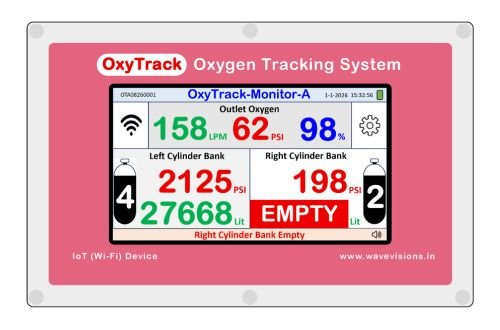

- OxyTrack Variants
- Cylinder Bank Options – Available for monitoring 2 or 3 oxygen cylinder banks
- Flow Monitoring Options – Selectable oxygen flow ranges of 0–100 / 0–200 / 0–500 LPM
- Remote Monitoring – Wi-Fi connectivity with live data and alarms accessible on Mobile, PC or Laptop
- Cloud Data Recording – Automatic minute-by-minute oxygen monitoring data recording through hospital Wi-Fi
- Online Reports – Hourly, Daily, Weekly & Monthly reports for oxygen pressure and consumption

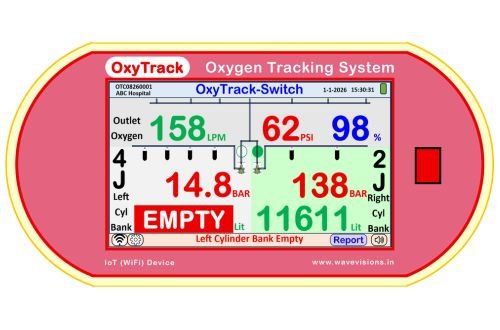

- Advanced OxyTrack Control – Optional version with Automatic Cylinder Bank Changeover Control
- OxyTrack Specifications
- Oxygen Consumption: Up to 99,999 / 99,999,999 Litres
- Cylinder Bank Pressure: 0–200 bar (0–3000 PSI), 2 or 3 banks
- Outlet Pressure: 0–100 PSI (0–7 bar)
- Oxygen Purity: 0–100%
- Oxygen Flow: 0–100 / 0–200 / 0–500 LPM, optional ranges
- Connectivity: Wi-Fi enabled with remote monitoring
- Alarms: User-adjustable High/Low Audio-Visual alarms for bank and outlet pressure
- Battery Backup: Built-in rechargeable battery with 4–6 hours backup
- Dimensions: 280 × 125 × 110 mm | Weight: 0.5 kg
What Happens Without vs With OxyTrack?
Situation
Without OxyTrack
With OxyTrack
